Quote - Fine ART Lighting Package

Recipient: Brendon Connors

Prepared By: Trevor Davies

LuxPrism

Product Specifications

  • Housing Color: White

  • Cutout Size: 125mm (4.9”) recessed

  • Power: 28W

  • Light Temperature: 3000K

  • CRI Color Rendering: 97

  • Luminosity: 1,100 - 1,200lm

  • Beam Angle: 55 degree fixed

  • Beam Uniformity: 85%

  • LightShape Contour Blades

  • Focus Ring: Rotate to adjust light sharpness

  • LED Driver Specifications

    • eldoLED ECOdrive 361/S Constant Current, 700mA

    • Dimming: 0-10V Smooth dim down to 1% with adaptable dim curves

    • Universal input voltage range (AC120-277V)

    • Programmable for any application

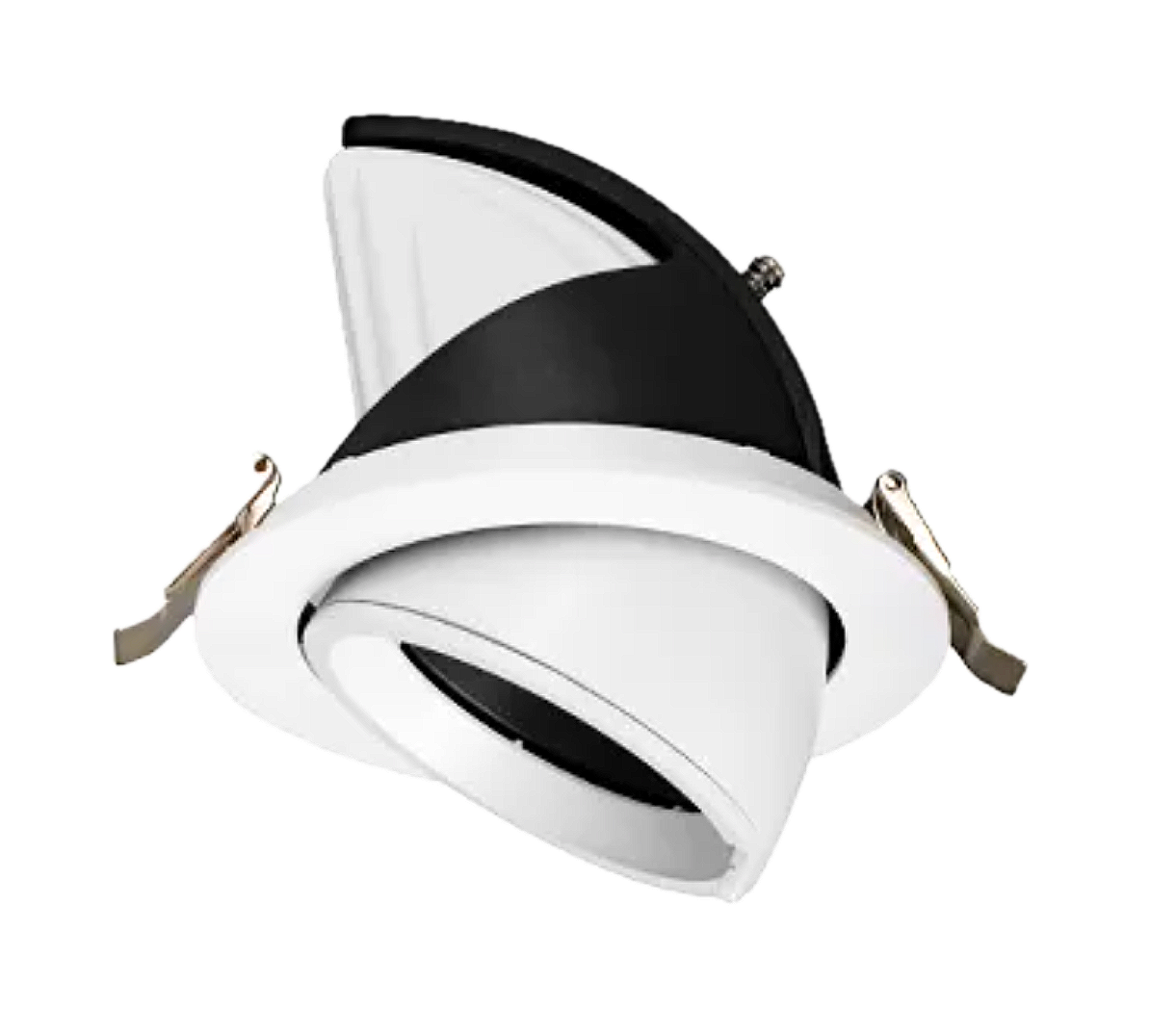

LuxAxis

Product Specifications

  • Housing Color: White

  • Cutout Size: 110-115mm (4.5”) recessed

  • Power: 20W

  • Light Temperature: 3000K

  • CRI Color Rendering: 90

  • Luminosity: 2,200 - 2,600lm

  • Beam Angle: 38 degree fixed

  • Gimbal angle range: 70 degrees

  • Rotation: 360 degree

  • LED Driver Specifications

    • eldoLED SOLOdrive 22W/S Small Form Factor Constant Current, 500mA

    • Dimming: 0-10V Ultra smooth dim down to 0.1% with adaptable dim curves

    • Universal input voltage range (AC120-277V)

    • Programmable for any application

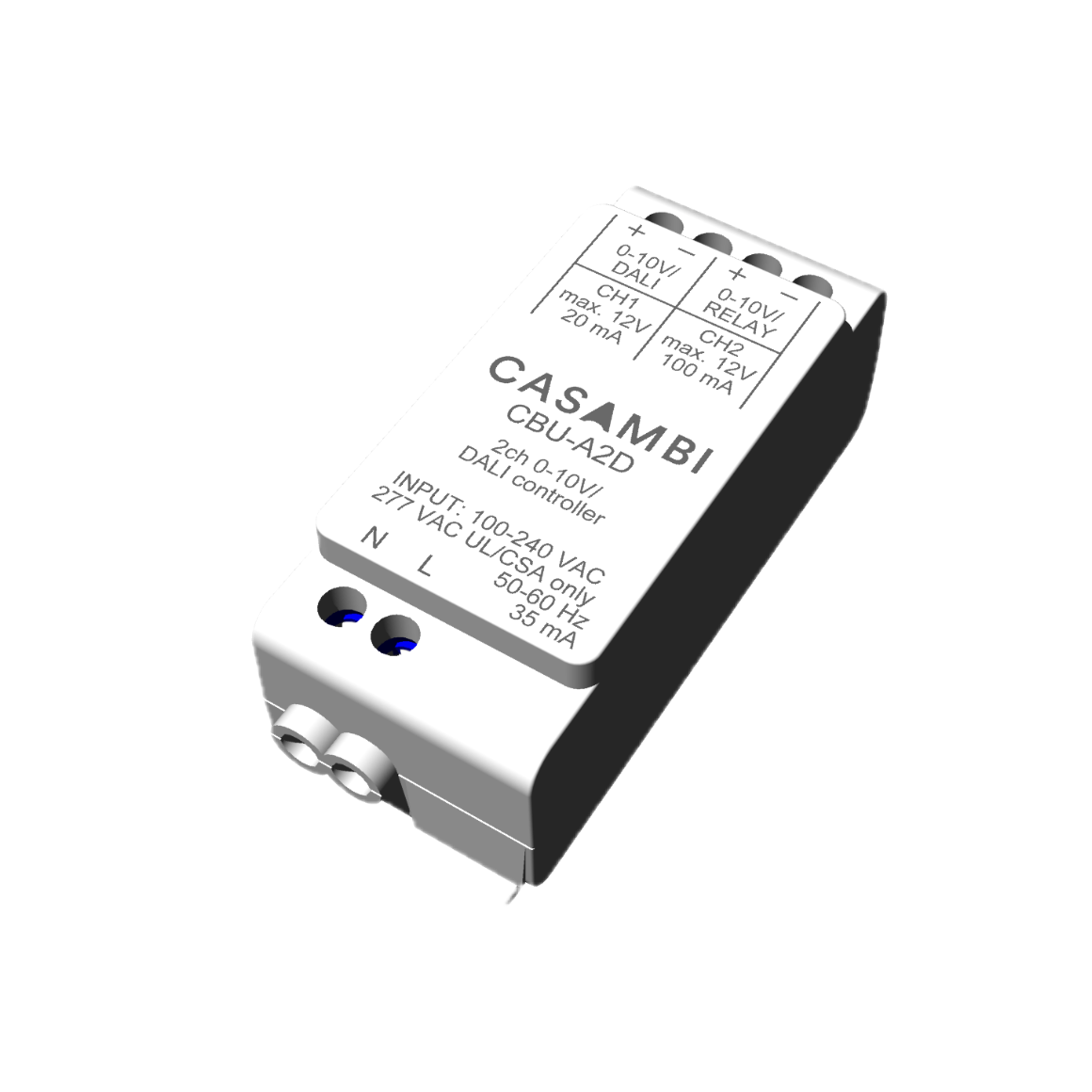

Casambi Bluetooth Controller

Product Specifications

  • Casambi enabled 2 channel 0-10V controller

  • Universal 100-277 VAC input voltage range

  • Control one or two 0-10V controllable LED drivers

  • Controlled with Casambi app (free dowload on apple app store)
